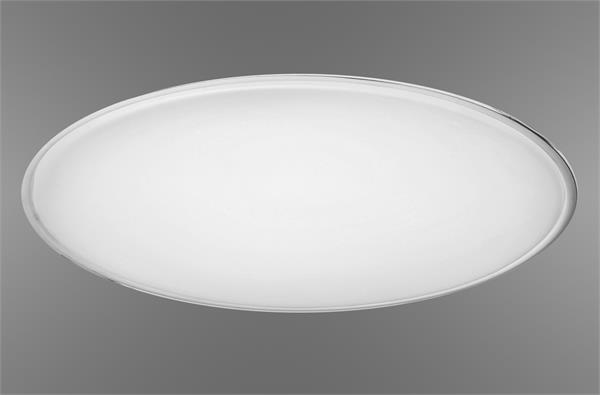

Magellan LED

Recessed grid, Concave or Convex Circular Dome, Direct illumination

By Mark Architectural Lighting

    Buy America(n) Option Available
  • Overview
  • Specifications
Make your mark with Magellan. Its softly translucent domed lens evenly distributes illumination across its surface, making the fixture resemble a floating circle of light. With lumen packages ranging from 300 to 17000 lumens, use Magellan to create a range of awe-inspiring installations. Six standard diameter sizes maximize design opportunity. Magellan ships in 5 days through Design2Ship™.
Read More
Read Less
Light Source LED - Static
Lumens 500 LM, 1000 LM, 3000 LM, 6500 LM, 9000 LM, 10,500 LM, 11,500 LM, 13,000 LM, 15,000 LM, 17,000 LM
CCT / LED Color 3000 K, 3500 K, 4000 K
CRI 80
Product Type Troffer
Compliance Listing BAA, Chicago Plenum
Environmental Listing Damp Location
Regulatory Listing CSA
Dimming Protocol 0-10V, DALI
Mounting Type Recessed
Voltage Rating 120, 277
Series MGL

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET Magellan LED Magellan LED 11/16/2022 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

    >> CLICK HERE to Download Spectral Data FAQs

    Document Type Document Title Description Updated View
    Spectral Data Sheet SpectralDataSheet_Mark_MGL_12_24_36IN_30K_80CRI.pdf MGL 12IN 24IN 36IN 30K 80CRI 6/14/2022 View
    Spectral Data Sheet SpectralDataSheet_Mark_MGL_12_24_36IN_35K_80CRI.pdf MGL 12IN 24IN 36IN 35K 80CRI 6/14/2022 View
    Spectral Data Sheet SpectralDataSheet_Mark_MGL_48_60_72IN_30K_80CRI.pdf MGL 48IN 60IN 72IN 30K 80CRI 6/14/2022 View

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions MAGELLAN LED INSTALLATION 12IN TO 36IN.pdf MAGELLAN LED 12IN TO 36IN View
    Installation Instructions MAGELLAN LED INSTALLATION 48IN TO 72IN.pdf MAGELLAN LED 48IN TO 72IN View

  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Sell Sheet MRK 046202 Magellan LED Sell Sheet View
