Planar Wall

Planar Wall Linear Lighting in Indirect with Static White

By Mark Architectural Lighting

  • Overview
  • Specifications

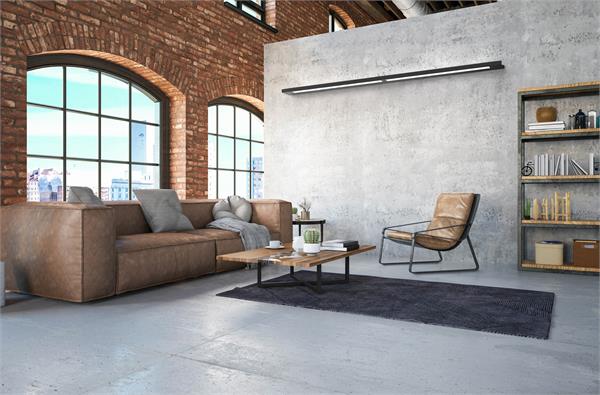

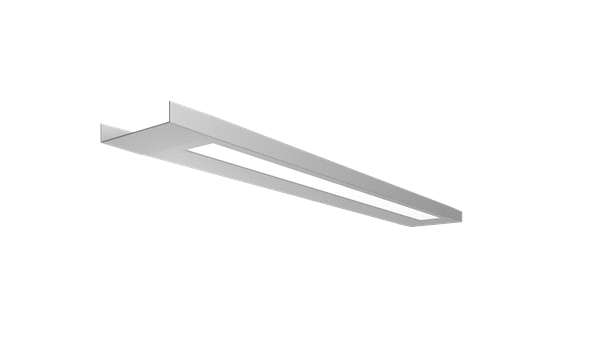

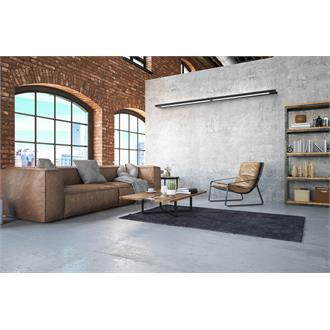

The Planar wall mount features a low profile and energy-saving optics. Eight available distributions form a palette of intensity ratios that provide the best optical effect. Available in 4ft. And 8 ft. sections with flat or sculpted end caps, place Planar Wall fixtures across classrooms, or commercial office and hospitality spaces. The Planar wall mount's asymmetric optic is artfully calibrated to deliver indirect direct illumination at 3000K, 3500K or 4000K.
Planar is now Declare listed
Read More
Read Less
Size 4FT, 8FT
Light Source LED - Static
Lumens 400 LM, 650 LM
CCT / LED Color 3000 K, 3500 K, 4000 K
CRI 80, 90
Product Type Linear
Compliance Listing Declare
Environmental Listing Damp Location
Regulatory Listing CSA
Dimming Protocol 0-10V
Mounting Type Surface
Voltage Rating 120, 120-277, 277
Series PLW8

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET PLW8 WALL.pdf Planar Indirect/Direct Wall 9/14/2021 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Spectral Data Sheets

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions 912-00202-001_PLW8.pdf Planar Wall 10/27/2020 View
  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures Planar Brochure.pdf Planar Brochure 10/27/2020 View
