SLOT 1 Wall

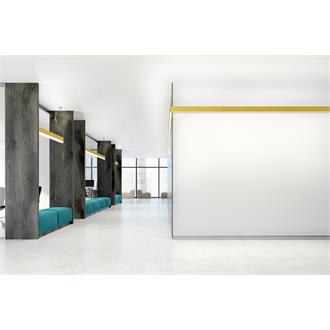

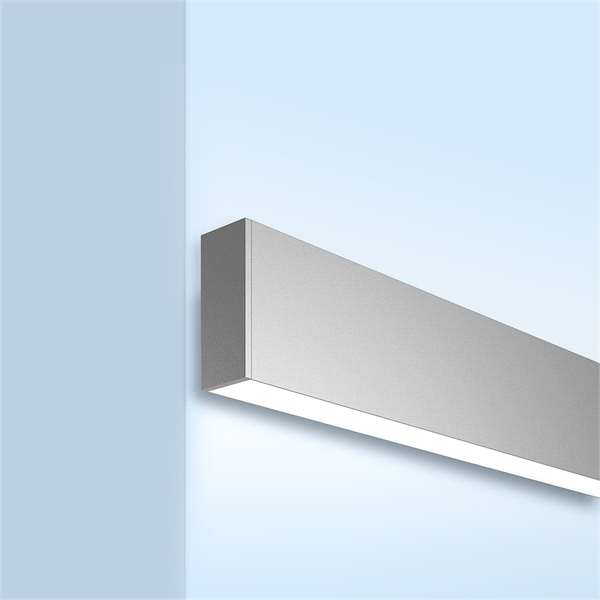

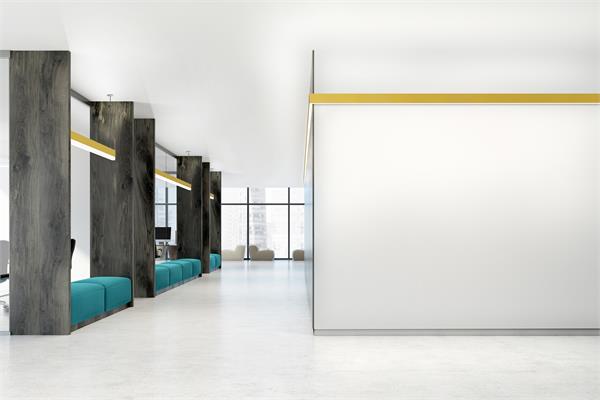

Wall mount linear lighting offering direct, indirect, or direct|indirect in both static & tunable white

By Mark Architectural Lighting

    Tunable White
  • Overview
  • Specifications
SLOT 1 linear lighting delivers a simple line of light by creating brilliant illumination and exceptional visual comfort in a small form factor.

SLOT 1 Wall delivers:
  • Specifiable in 1-in increments
  • Up to 935 (direct) | 1275 (indirect) delivered LMF
  • As low as 240 (direct) | 425 (indirect) delivered LMF
  • Up to 117 (direct) | 169 (indirect) LMW

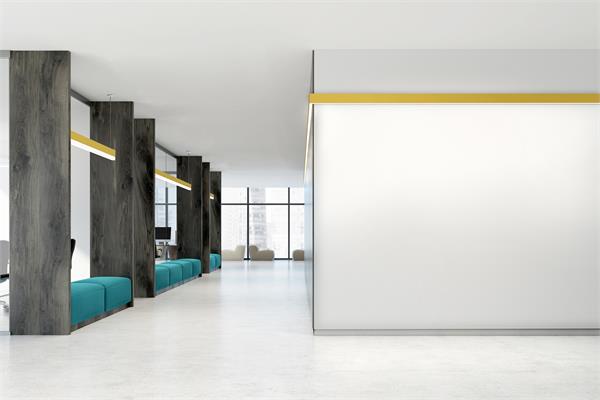

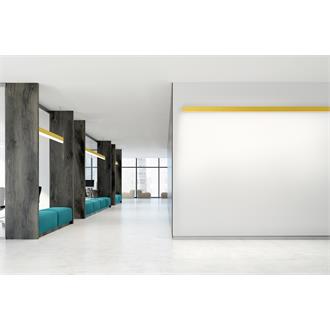

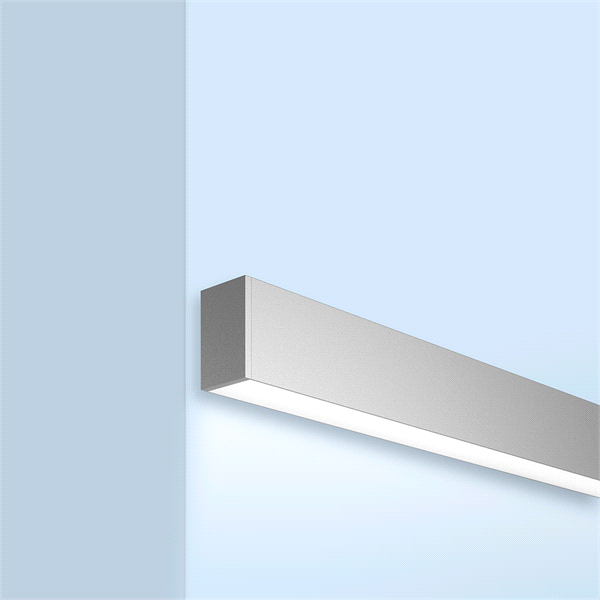

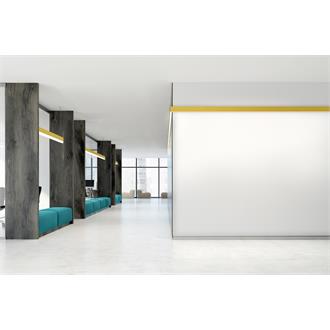

  • Lambertian, wall graze, or asymmetric distributions (direct)

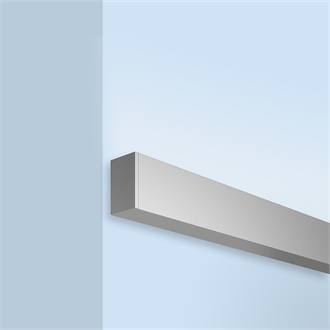

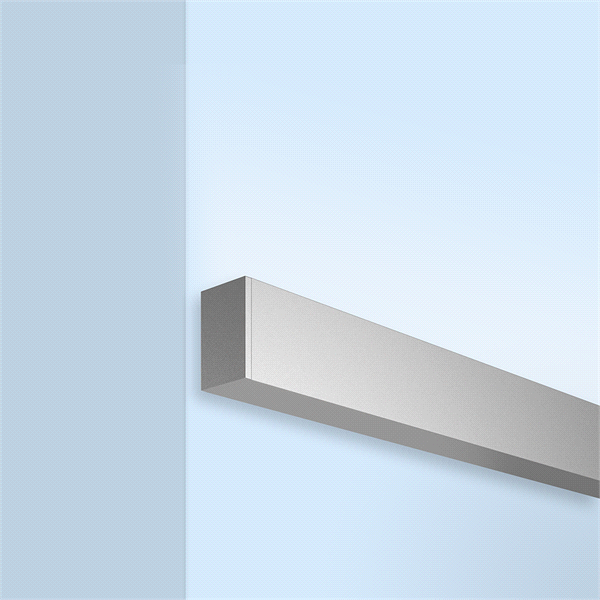

  • Lambertian or asymmetric distributions (indirect)
  • Multiple lens options including flush, drops, edge view, and more
  • Top glow shielding (indirect) and integrated deep cell quiet baffle (indirect)
  • Integrated Vertex™ sensor available
  • Flicker free dimming to dark (0.01%) enabled by Modulus power and control architecture with integrated digital nLight® module for system networking
  • Mainstream Dynamic tunable white with nTune technology offers tuning from 2700K to 6500K
  • SLOT 1 participates in Declare, a material transparency program
Read More
Read Less
Size 2FT, 3FT, 4FT, 5FT, 6FT, 7FT, 8FT
Light Source LED - Dynamic, LED - Static
Dynamic Feature Tunable White
Lumens 200 LM, 250 LM, 300 LM, 350 LM, 400 LM, 450 LM, 500 LM, 550 LM, 600 LM, 650 LM, 700 LM, 750 LM, 800 LM, 850 LM, 900 LM, 950 LM, 1000 LM, 1200 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
CRI 80, 90
Product Type Linear
Compliance Listing Declare
Environmental Listing Damp Location
Regulatory Listing UL
Dimming Protocol 0-10V, DALI
Mounting Type Surface
Voltage Rating 120, 120-277, 277, 347
Series S1LWID, S1LWI, S1LWD

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET Modulus.pdf Modulus Head Unit (DK320M & DK75M) 1/10/2022 View
    SPEC SHEET S1LWD TUWH WALL.pdf Slot 1 Direct Wall Tunable White 4/14/2022 View
    SPEC SHEET S1LWD WALL.pdf Slot 1 Direct Wall 4/14/2022 View
    SPEC SHEET S1LWI TUWH WALL.pdf Slot 1 Indirect Wall Tunable White 4/14/2022 View
    SPEC SHEET S1LWI WALL.pdf Slot 1 Indirect Wall 4/14/2022 View
    SPEC SHEET S1LWID TUWH WALL.pdf Slot 1 Indirect/Direct Wall Tunable White 4/14/2022 View
    SPEC SHEET S1LWID WALL.pdf Slot 1 Indirect/Direct Wall 4/14/2022 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Spectral Data Sheets

    Document Type Document Title Description Updated View
    Spectral Data Sheet SpectralDataSheet_Mark_Slot1_27K_90CRI.pdf Slot 1 27K 90CRI 5/24/2022 View
    Spectral Data Sheet SpectralDataSheet_Mark_Slot1_35K_90CRI.pdf Slot 1 35K 90CRI 5/24/2022 View
    Spectral Data Sheet SpectralDataSheet_Mark_Slot1_40K_90CRI.pdf Slot 1 40K 90CRI 5/24/2022 View
    Spectral Data Sheet SpectralDataSheet_Mark_Slot1_50K_90CRI.pdf Slot 1 50K 90CRI 5/24/2022 View
  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions PIN007908_ModulusInstallation_revD.pdf Modulus/Head Unit (DK320M) 2/2/2022 View
    Installation Instructions Slot1_Wall_InstallationInstructions_19-2848.pdf Slot 1 Wall (S1LWID, S1LWD, S1LWI) 1/5/2022 View
    Installation Instructions Slot1_Wall_QuickStartGuide_19-2852.pdf Slot 1 Wall Quick Start Guide 11/13/2020 View
    Technical Bulletins NL_1008400_nLight Wired Architectural Ambient Tech Guide_0122_002.pdf nLight Wired Linear Technical Guide 2/3/2022 View
  • Utility Rebate Search

  • Replacement Parts

    Document Type Document Title Description Updated View
    Replacement Part Installation Instructions Slot1_RepairKits_InstallationInstructions_19-2902.pdf Slot 1 Repair Kit 11/13/2020 View
    Replacement Part Spec Sheet SLOT1 Repair Kits.pdf Slot 1 Repair Kits 12/29/2021 View
  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures SLOT 1 Brochure SLOT 1 Overview Brochure 3/16/2020 View
    Sell Sheet SLOT 1 Sell Sheet SLOT 1 Overview Sell Sheet 3/16/2020 View
