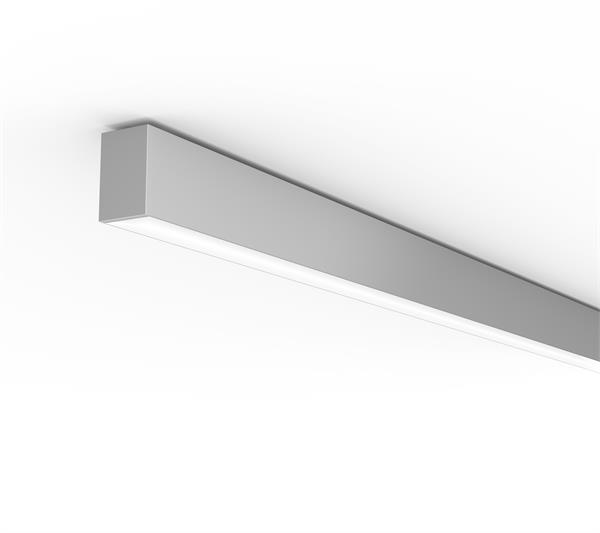

SLOT 1 Surface

Surface mount linear lighting offering both static & tunable white

By Mark Architectural Lighting

    Tunable White
  • Overview
  • Specifications
SLOT 1 linear lighting delivers a simple line of light by creating brilliant illumination and exceptional visual comfort in a small form factor.

SLOT 1 Surface delivers:
  • Up to 935 delivered LMF
  • As low as 240 delivered LMF
  • Up to 117 LMW
  • Lambertian, wall wash, wall graze, batwing, or asymmetric distributions

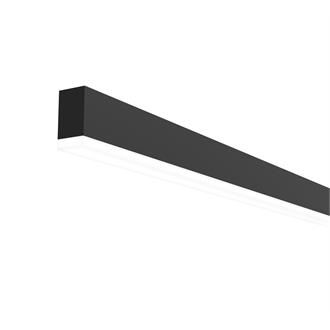

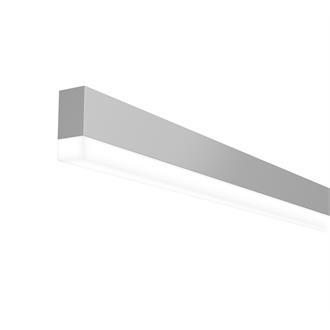

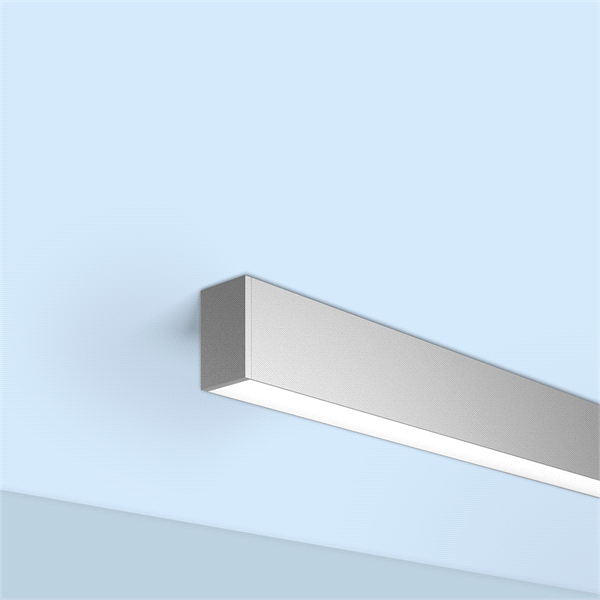

  • Multiple lens options including flush, drops, edge view, and more
  • Integrated Vertex™ sensor available
  • Flicker free dimming to dark (0.01%) enabled by Modulus power and control architecture with integrated digital nLight® module for system networking
  • Mainstream Dynamic tunable white with nTune technology offers tuning from 2700K to 6500K
  • SLOT 1 participates in Declare, a material transparency program
Read More
Read Less
Size 2FT, 3FT, 4FT, 5FT, 6FT, 7FT, 8FT
Light Source LED - Dynamic, LED - Static
Dynamic Feature Tunable White
Lumens 200 LM, 250 LM, 300 LM, 350 LM, 400 LM, 450 LM, 500 LM, 550 LM, 600 LM, 650 LM, 700 LM, 750 LM, 800 LM, 850 LM, 900 LM, 950 LM, 1000 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
CRI 80, 90
Product Type Linear
Compliance Listing Declare
Environmental Listing Damp Location
Regulatory Listing UL
Dimming Protocol 0-10V, DALI
Light Distribution Wall Wash
Mounting Type Surface
Voltage Rating 120, 120-277, 277, 347
Series S1LS

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET Modulus.pdf Modulus Head Unit (DK320M & DK75M) 1/10/2022 View
    SPEC SHEET S1LS SURFACE.pdf Slot 1 Surface 4/14/2022 View
    SPEC SHEET S1LS TUWH SURFACE.pdf Slot 1 Surface Tunable White 4/14/2022 View
