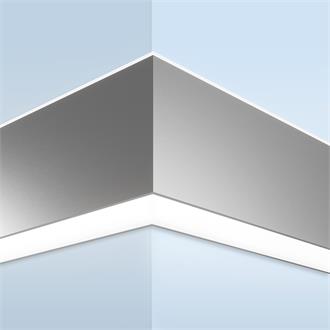

SLOT 4 Wall Pattern

Slot 4 Wall Linear Lighting Pattern in Direct, Indirect and Direct|Indirect with Static White and Tunable White

By Mark Architectural Lighting

    Tunable White
  • Overview
  • Specifications
Unlocking creativity and unparalleled performance, the Slot 4 wall pattern creates simple lines of light and is configurable for several geometric designs using its 3 standard pattern joints. A choice of Indirect, Direct/Indirect and Direct distributions as well as 1 ft. increments make this fixture a brilliant asset in creating functional and artful installations across walls. The Slot 4 wall pattern luminaire delivers up to 1000 lumens per foot direct and up to 1200 lumens per foot indirect all at an exceptional color quality of up to 90 CRI. Available in Static White and Tunable White. Slot 4 is now Declare listed
Read More
Read Less
Size 8FT
Light Source LED - Dynamic, LED - Static
Dynamic Feature Tunable White
Lumens 350 LM, 400 LM, 450 LM, 500 LM, 550 LM, 600 LM, 650 LM, 700 LM, 750 LM, 800 LM, 850 LM, 900 LM, 950 LM, 1000 LM, 1200 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
CRI 80, 90
Product Type Linear
Compliance Listing Declare
Environmental Listing Damp Location
Regulatory Listing CSA
Dimming Protocol 0-10V, DALI
Light Distribution Asymmetric indirect
Mounting Type Surface
Fixture Wattage 15.4, 16.8, 22.1, 23.6, 30.2, 32, 32.2, 37, 37.2, 37.5, 40.4, 45.6, 45.7, 48.8, 52, 54, 59, 61, 62, 67, 69, 74
Voltage Rating 120, 120-277, 277
Series S4LWIDP, S4LWDP, S4LWIP

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET S4LWDP TUWH WALL PATTERNS.pdf Slot 4 PSW TUWH Pattern (Corners, Tees and Xs) 1/13/2022 View
    SPEC SHEET S4LWDP WALL PATTERNS.pdf Slot 4 PSW Pattern (Corners, Tees and Xs) 1/13/2022 View
    SPEC SHEET S4LWIDP TUWH WALL PATTERNS.pdf Slot 4 PSW TUWH Pattern (Corners, Tees and Xs) 1/13/2022 View
    SPEC SHEET S4LWIDP WALL PATTERNS.pdf Slot 4 PSW Pattern (Corners, Tees and Xs) 1/13/2022 View
    SPEC SHEET S4LWIP TUWH WALL PATTERNS.pdf Slot 4 PSW TUWH Pattern (Corners, Tees and Xs) 1/13/2022 View
    SPEC SHEET S4LWIP WALL PATTERNS.pdf Slot 4 PSW Pattern (Corners, Tees and Xs) 1/13/2022 View
  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Spectral Data Sheets

    Document Type Document Title Description Updated View
    Spectral Data Sheet SpectralDataSheet_Mark_Slot2_4_PSW_35K_80CRI.pdf Slot 2/4 PSW 35K 80CRI 5/18/2022 View
  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions 17-2836-B _ INSTALL SLOT PSW S2L_S4L GEN3.pdf Slot PSW Patterns 3/25/2019 View
    Installation Instructions INSTALL INSTRUCTIONS DIRECT WALL.pdf Slot PSW DIRECT WALL (S2LWD, S4LWD) 2/22/2022 View
    Installation Instructions INSTALL INSTRUCTIONS INDIRECT WALL.pdf Slot PSW INDIRECT WALL (S2LWI, S4LWI) 2/22/2022 View
    Installation Instructions install-instructions-bidirect-wall.pdf Slot PSW INDIRECT/DIRECT WALL (S2LWID, S4LWID) 2/22/2022 View
    Installation Instructions NLIGHT_Air_Installation.pdf nLight Air 3/22/2021 View
    Technical Bulletins NL_1008400_nLight Wired Architectural Ambient Tech Guide_0122_002.pdf nLight Wired Linear Technical Guide 2/3/2022 View
    Technical Bulletins NLTAIR2 Architectural Ambient Tech Guide.pdf NLTAIR2 Linear Technical Guide 1/27/2020 View
